What Is a 504 Gateway Timeout? Causes and SEO Impact

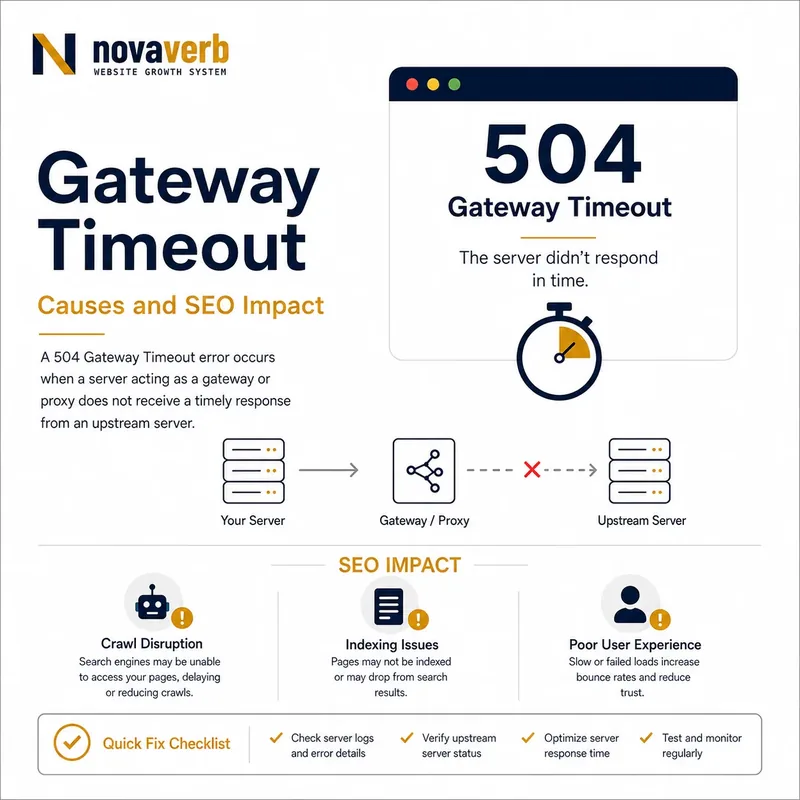

What Does 504 Gateway Timeout Mean?

A 504 Gateway Timeout means that a server acting as a gateway or proxy did not receive the response it needed from an upstream server within the allowed time.

A 504 response establishes several facts:

An intermediary handled the request: A CDN, reverse proxy, gateway or load balancer was involved.
The intermediary contacted an upstream system: It depended on another server or service to complete the request.
The upstream response was too late: The configured waiting period expired before the required response arrived.
The requested resource was not delivered: The client received the timeout response instead of the intended content.
The root cause remains unknown: The status does not identify which upstream component became slow or stalled.

The upstream service may still be running. It can return too slowly because of load, blocked execution, database latency, network delay or another dependency.

Core distinction: A 504 describes an expired gateway wait. It does not prove that the upstream server is completely offline.

How Does an HTTP 504 Response Work?

An HTTP 504 response occurs when a gateway forwards a request upstream, waits for the required response and reaches its timeout before the upstream operation finishes.

A browser or crawler requests a URL.
The request reaches a CDN, proxy or load balancer.
The intermediary forwards the request to an upstream server.
The upstream begins processing or waits on another dependency.
The configured gateway timeout expires.
The intermediary returns 504 Gateway Timeout.

Client
→ CDN or reverse proxy
→ Application server
→ Database or external API
→ Response does not arrive in time
→ Gateway returns HTTP 504

The upstream operation may continue after the gateway has stopped waiting. This matters for non-idempotent actions such as payments, imports or form submissions, where automatic retries can create duplicate work.

Diagnostic requirement: Measure elapsed time at each layer instead of assuming the gateway itself is slow.

What Is an Upstream Server?

An upstream server is a server or service that a gateway, proxy or application depends on to complete the current request.

Depending on the architecture, an upstream system may be:

An origin web server behind a CDN
An application server behind Nginx
A PHP-FPM process behind a web server
A container behind a load balancer
A database used by an application
An internal microservice
A third-party payment, search or authentication API
A queue, cache or storage service

Browser
→ CDN
→ Load balancer
→ Application
→ Database

Each system to the right can be upstream
relative to the system immediately before it.

“Upstream” is relational. The application is upstream from the reverse proxy, while the database is upstream from the application.

Diagnostic implication: Identify which component was waiting on which upstream dependency before changing timeout settings.

What Causes a 504 Gateway Timeout?

A 504 can be caused by slow application execution, long database queries, overloaded workers, stalled dependencies, network latency or timeout settings that expire before valid processing finishes.

Cause	Example	Evidence to inspect
Slow application code	A report builds synchronously for longer than the proxy permits.	Application traces, profiling and route latency
Slow database query	An unindexed query scans a large table.	Query plan, slow-query log and lock metrics
Worker exhaustion	Requests wait in a queue because all workers are busy.	Worker utilization, queue time and concurrency
External API delay	A third-party service does not respond before the gateway timeout.	Dependency traces and provider status
Deadlock or blocking lock	A transaction waits indefinitely for another transaction.	Database locks, deadlock events and transaction logs
Network latency	Packets between gateway and upstream are delayed or lost.	Network metrics, retransmissions and regional tests
Autoscaling delay	New application instances are not ready before queues grow.	Scaling events, readiness time and request backlog
Timeout mismatch	A gateway times out before the application’s own timeout.	Timeout configuration across every serving layer
Resource saturation	CPU, memory, disk or connection pools reach capacity.	Infrastructure metrics and saturation alerts

Several delays can accumulate. DNS, connection setup, queueing, application execution and database work may each be acceptable alone but exceed the total gateway limit together.

504 Error vs 502 Bad Gateway

A 504 means the gateway did not receive an upstream response in time. A 502 means the gateway received an invalid or unusable upstream response.

Dimension	504 Gateway Timeout	502 Bad Gateway
Gateway observation	No required response arrived before timeout.	The response or upstream exchange was invalid.
Typical example	A database query runs longer than the proxy allows.	The application closes the connection prematurely.
Primary evidence	Latency traces and timeout logs	Protocol, header and connection errors
Corrective focus	Reduce upstream response time or align justified limits.	Restore a valid upstream connection and response.
Common wrong fix	Increasing every timeout without finding the delay	Increasing timeouts when the response is malformed

Both codes require a gateway or proxy relationship, but they describe different failures in the upstream exchange.

504 Error vs 503 Service Unavailable

A 504 means a gateway waited too long for an upstream response. A 503 means a service is temporarily unable to handle the request.

Dimension	504 Gateway Timeout	503 Service Unavailable
Primary condition	Upstream response exceeded the gateway deadline.	Service temporarily lacks availability or capacity.
Request behavior	The gateway normally waits before failing.	The request may be rejected immediately.
Typical cause	Slow application, database or API	Maintenance, overload or no healthy instances
Retry-After	Not central to the defined meaning	Can communicate a recovery estimate
Corrective focus	Repair the slow dependency path.	Restore service readiness or capacity.

A heavily overloaded service may produce either status at different layers. Use logs to determine whether the request was rejected or timed out while waiting.

504 Error vs 500 Internal Server Error

A 504 identifies an upstream timeout observed by a gateway. A 500 identifies an unexpected internal failure in the server processing the request.

Dimension	504 Gateway Timeout	500 Internal Server Error
Architecture	Requires a gateway or proxy relationship.	Can occur within a single application or server.
Failure meaning	The upstream response arrived too late or not at all.	An unexpected internal condition prevented completion.
Typical evidence	Gateway timing and distributed traces	Application exceptions and server logs
Primary question	Which upstream step exceeded its deadline?	Which internal component failed?
Common example	Slow database query	Unhandled application exception

An internal application error may indirectly stall a request and eventually cause a gateway timeout. The public status and the underlying root cause can therefore differ.

504 Error vs Browser Timeout

A 504 is an HTTP response generated by a gateway. A browser timeout occurs when the client stops waiting and may happen without receiving any HTTP response.

Dimension	504 Gateway Timeout	Browser or client timeout
Who ends the wait?	The gateway or proxy	The browser, crawler or API client
HTTP response received?	Yes, status 504	Not necessarily
Failure path	Gateway-to-upstream	Client-to-server or full request path
Diagnostic evidence	Gateway logs and upstream timing	Client error, network trace and server access logs
Possible relationship	A slow upstream triggers the gateway deadline.	A shorter client deadline may expire before the gateway does.

Timeout values can differ at every layer. The component with the shortest deadline often determines which error the user sees first.

Which Server Returns the 504 Error?

The gateway or proxy whose upstream waiting period expires normally returns the public 504 response.

Identify the responding layer by checking:

Response headers: Look for CDN, server, proxy, request ID and trace headers.
Error-page branding: Some gateways identify the platform that generated the response.
Gateway access and error logs: These show the request, upstream and timeout message.
Upstream logs: These reveal whether the request arrived and how long it ran.
Distributed traces: A trace can show which span consumed the time budget.
Regional tests: Different edge locations may use different gateways or upstream routes.

The upstream server may never return a 504 itself. It may continue processing while the gateway has already ended the public request.

Evidence rule: Preserve the request or trace identifier before refreshing the page. It can connect the public timeout to the exact upstream operation.

Can a CDN Cause a 504 Gateway Timeout?

Yes. A CDN can return 504 when its edge server does not receive a response from the configured origin within the CDN’s upstream timeout.

CDN-related scenarios include:

The origin application responds too slowly.
The CDN-to-origin network path has high latency or packet loss.
The origin accepts the connection but stalls during processing.
A regional origin is overloaded.
An edge function waits on a slow service.
The origin’s connection pool or worker pool is exhausted.
The CDN’s timeout is shorter than the origin’s processing deadline.
Large uncached requests repeatedly reach the origin.

Compare cached and uncached URLs, edge regions, request identifiers and direct-origin response time. A CDN timeout can expose an origin problem without being its root cause.

Security boundary: Test the origin only through authorized methods. Do not publish origin addresses or disable CDN protection broadly.

Can Nginx Cause a 504 Gateway Timeout?

Nginx can return 504 when it acts as a reverse proxy or FastCGI gateway and the configured upstream response timeout expires.

Common Nginx timeout paths include:

proxy_read_timeout expires while waiting for an upstream response.
fastcgi_read_timeout expires while waiting for PHP-FPM.
The application waits on a slow database query.
A PHP worker is blocked or saturated.
The upstream sends no data for longer than the permitted interval.
A container or service stalls without closing the connection.
A large report or export runs synchronously.
Different Nginx layers use inconsistent timeout values.

Review the Nginx error log for messages such as “upstream timed out while reading response header.” Then correlate the request with upstream execution time.

Do not start by increasing the timeout: First determine whether the request is legitimately long or pathologically slow.

Can Apache Cause a 504 Gateway Timeout?

Apache can return 504 when it proxies a request to a backend that does not respond within the configured proxy timeout.

Potential causes include:

A proxied application takes too long to respond.
ProxyTimeout expires before backend processing finishes.
A FastCGI process waits on database or file operations.
The backend worker pool is saturated.
The request remains queued behind other long-running work.
A proxy chain contains multiple, inconsistent timeout values.
The backend network path is slow or unstable.
A deployment causes one backend to respond much more slowly.

Review Apache’s proxy error, access logs and backend response time. Determine whether the timeout applies globally or only to one route.

Configuration rule: A higher proxy timeout should reflect a justified application contract, not compensate for an unknown performance regression.

Can PHP-FPM Cause a 504 Error?

Yes. A web server can return 504 when PHP-FPM accepts a request but does not produce the required response before the FastCGI waiting period expires.

PHP-FPM-related causes include:

All PHP workers are busy.
A request waits in the PHP-FPM listen queue.
A PHP script runs a slow database query.
A plugin calls a slow external API.
A PHP process is blocked on file or network I/O.
An import, export or image task runs synchronously.
A lock prevents another process from continuing.
The PHP execution limit and proxy timeout are misaligned.

Inspect the PHP-FPM slow log, process status, queue size, worker saturation and the exact application trace for the timed-out route.

Capacity boundary: Adding PHP workers without adequate CPU and memory can increase contention and make timeouts more frequent.

Can a Database Cause a 504 Gateway Timeout?

Yes. A database can indirectly cause 504 when an application waits on a query, connection or lock for longer than the gateway permits.

Database-related causes include:

A missing index causes a large table scan.
A query returns or sorts an excessive data set.
Transactions block one another.
A deadlock is not resolved promptly.
The connection pool is exhausted.
The database CPU, memory or disk is saturated.
A replica is lagging or unavailable.
Network latency separates the application and database.

Capture the SQL statement, execution plan, lock state, rows examined, connection wait and application span. A high total request time does not prove the database consumed all of it.

Optimization rule: Fix the query, data access pattern or resource bottleneck before extending the public request deadline.

Can an External API Cause a 504 Error?

Yes. An external API can cause a 504 when the application waits synchronously for that dependency and the full request exceeds the gateway deadline.

Risk increases when the application:

Uses no explicit API timeout.
Retries repeatedly inside the same user request.
Calls several external services sequentially.
Waits for nonessential enrichment before rendering.
Has no cached or degraded fallback.
Uses an API endpoint with unstable latency.
Performs slow authentication or token refreshes.
Does not implement circuit breaking.

Separate essential dependencies from optional ones. Where business rules permit, use caching, asynchronous processing, bounded retries and controlled degradation.

Retry safety: Do not retry payment, booking or other non-idempotent operations automatically unless the API contract prevents duplicate actions.

Can DNS Cause a 504 Gateway Timeout?

DNS can contribute to a 504 when delayed, stale or incorrect upstream resolution sends a gateway toward an unreachable or slow destination.

Possible DNS-related paths include:

The gateway resolves an outdated origin address.
A service name points to an unhealthy instance.
Resolver latency consumes part of the request budget.
Split DNS returns a route that is unreachable internally.
Regional DNS sends traffic to a distant upstream.
IPv6 resolution selects a broken network path.
A migration leaves inconsistent records across environments.

DNS failures often produce resolution or connection errors rather than 504 directly. The final status depends on how the gateway handles the delayed or unreachable destination.

Testing rule: Resolve the upstream hostname from the gateway environment, not only from a local workstation.

Can a Load Balancer Cause a 504 Error?

Yes. A load balancer can return 504 when a selected backend does not produce the required response before the load balancer’s idle or request timeout expires.

Common conditions include:

One backend instance is substantially slower than others.
The application remains technically healthy but cannot complete real requests.
Connection draining interrupts long-running work.
The load balancer’s timeout is shorter than backend processing time.
A target’s worker or database pool is saturated.
Cross-zone or cross-region latency increases.
A deployment creates inconsistent performance between versions.
Health checks do not test critical dependencies.

Compare timeout rates by backend target, zone, release and route. Intermittent 504 errors often indicate one slow target inside an otherwise healthy group.

Health-check rule: A fast health endpoint does not prove that dynamic pages, database queries or third-party dependencies meet their latency targets.

Are 504 Errors Bad for SEO?

An isolated short-lived 504 does not automatically cause a ranking loss, but repeated or prolonged timeouts can block content retrieval, reduce crawling and eventually affect indexing.

SEO risk increases when 504 errors affect:

The homepage or primary category pages
Large groups of canonical URLs
New content awaiting discovery
XML sitemap URLs
Rendering APIs, JavaScript or CSS resources
Important product and conversion routes
Specific regions or mobile traffic
Googlebot repeatedly during crawl attempts

The risk depends on recurrence, duration, affected coverage and whether successful responses return promptly.

Priority rule: Treat sitewide, recurring or revenue-path 504 errors as availability incidents rather than ordinary on-page SEO issues.

How Does Google Handle 504 Responses?

Googlebot treats HTTP 504 as a server error, cannot retrieve the intended page from that request and may return later to try the URL again.

Googlebot requests the URL.
A gateway returns HTTP 504.
Google receives no normal page content.
The timeout contributes to observed server health.
Googlebot may retry the URL later.
Significant or persistent failures can reduce crawling.
Long-term unavailability can eventually affect indexing.

Google does not publish a universal number of 504 responses or a fixed outage duration that guarantees a particular indexing result.

Evidence boundary: One timeout does not prove immediate deindexing. Review recurrence, affected scope, server logs and subsequent successful retrievals.

See Google Search Central’s crawling-error guidance.

Can 504 Errors Reduce Googlebot Crawling?

Yes. A significant number of 504 responses and connection timeouts can signal serving problems, causing Googlebot to reduce crawl activity.

Crawl reduction becomes more likely when:

Many URLs time out during the same crawl period.
The same routes fail repeatedly.
Response times deteriorate before requests fail.
Robots.txt or XML sitemaps also time out.
The entire hostname or region becomes slow.
Successful responses do not return between visits.
Timeouts affect assets required for rendering.

Crawl backoff protects struggling infrastructure from additional demand. Crawl activity can recover after the server consistently responds successfully again.

Operational rule: Improve serving health for users first. Do not try to preserve crawler activity by disguising timeouts as successful pages.

Can a Long 504 Outage Remove Pages From Google?

Yes. If Google repeatedly cannot retrieve a URL because of prolonged 504 responses, the page can eventually lose indexing and Search visibility.

The risk depends on:

How long the timeout condition continues
How frequently Googlebot requests the page
Whether the error is constant or intermittent
The percentage of the site affected
Whether the URL was previously indexed
Whether successful responses return after recovery
Whether the same infrastructure serves the entire hostname

A correct 504 is better than returning a false success response, but it does not preserve inaccessible pages indefinitely.

Recovery priority: Restore stable content delivery and verify important URLs with fresh crawls rather than relying on an assumed grace period.

Should a 504 Error Page Return 200?

No. A page displayed because a gateway timed out should return an accurate server-error response rather than 200 OK.

Response	What it communicates	Result
`504 Gateway Timeout`	The gateway did not receive a timely upstream response.	Accurate for a genuine gateway timeout
`200 OK`	The requested resource was served successfully.	Misleading when only an error message appears
`503 Service Unavailable`	The service is temporarily unavailable.	Use only when that is the actual operational state

A useful error page can offer navigation and support information, but the status must continue to describe the failed request accurately.

Should You Increase the Gateway Timeout?

Increase a gateway timeout only when measured evidence shows that the request is legitimately long, safely bounded and expected to complete within the revised service contract.

Increasing the timeout may be justified when:

A controlled export has an intentionally longer processing time.
The route has a documented maximum duration.
Resource use remains safe throughout the request.
The user experience clearly communicates the wait.
All upstream and client timeouts are aligned.
Asynchronous processing is not practical for the workflow.

It is usually the wrong first action when the delay comes from an unindexed query, dependency outage, worker saturation, lock contention or performance regression.

Capacity risk: Longer timeouts keep connections and workers occupied for longer. Under load, this can enlarge queues and make the outage worse.

How Do You Find 504 Errors?

Find 504 errors by combining live HTTP checks, uptime monitoring, crawl data, gateway logs, distributed traces and upstream latency metrics.

Evidence source	What it reveals	Limitation
HTTP status checker	The current public response and headers	May miss intermittent timeouts
Website crawl	URLs returning 504 during the crawl window	Depends on timing and URL discovery
Uptime monitoring	Availability history and regional differences	Usually checks selected endpoints
Gateway logs	The selected upstream and exact timeout event	Requires usable request identifiers
Distributed traces	Time consumed by each service and dependency	Requires end-to-end instrumentation
Database monitoring	Slow queries, locks and connection waits	Covers only one possible dependency
Search Console	Server errors encountered during Google crawling	Not a real-time incident system

Group errors by route, gateway, upstream target, region, release and duration. This separates one slow endpoint from a sitewide serving-capacity problem.

Definition of Done: URL captured → status recorded → gateway identified → upstream path traced → slow component measured → scope documented → owner assigned.

Check one URL with the HTTP Status & Redirect Chain Tracer.

How Do You Diagnose a 504 Gateway Timeout?

Diagnose a 504 by identifying the gateway deadline, tracing the complete upstream request path and measuring which component consumed the available time.

Capture the exact URL, method, timestamp and headers.
Determine whether the timeout is constant or intermittent.
Identify the gateway that returned 504.
Record the request ID or trace ID.
Document the configured timeout at each layer.
Identify the selected upstream server.
Measure connection, queue and processing time separately.
Review application, database and dependency traces.
Check worker, connection and resource saturation.
Compare recent deployments and traffic changes.
Reproduce the request safely under controlled conditions.
Verify the fix across repeated and representative requests.

The public 504 identifies where the waiting stopped, not where the delay began. A complete trace is more useful than increasing one visible timeout.

Root-cause standard: “The request took too long” is an observation. A root cause identifies which operation was slow, why it was slow and how the correction prevents recurrence.

How Do You Fix a 504 Gateway Timeout?

Fix a 504 by reducing the upstream operation below the required deadline or, when justified, aligning the timeout contract across the request path.

Verified cause	Possible correction	Required verification
Slow database query	Optimize the query, index or data-access pattern	Query and page meet latency targets
Worker saturation	Reduce workload, fix queueing or add justified capacity	Queue time remains within limits under load
Slow external API	Add bounded timeouts, caching, fallback or asynchronous work	The route remains available during dependency delay
Blocking lock	Correct transaction scope and lock contention	Requests no longer wait on the same lock path
One slow backend	Repair or remove the target and improve health checks	All active targets meet latency objectives
Legitimate long task	Move work to a queue or set a justified bounded timeout	The user receives reliable progress or completion
Timeout mismatch	Align gateway, application and dependency deadlines	The intended layer terminates failures predictably
Infrastructure saturation	Optimize demand and restore adequate capacity	Error rate and latency stay within targets

After recovery, recrawl important URLs, compare regional responses, review latency percentiles and monitor the next deployment or traffic peak.

Completion rule: A single successful request is insufficient. Confirm stable latency, corrected traces and no recurrence during a realistic observation window.

Common 504 Gateway Timeout Mistakes

Common mistakes increase every timeout, hide the error, ignore asynchronous alternatives or investigate only the gateway instead of tracing the complete upstream delay.

Mistake	Why it fails	Preferred correction
Increasing all timeouts	The slow operation remains and occupies resources longer.	Measure and fix the bottleneck first.
Returning 200 for the error page	The response falsely reports successful delivery.	Return the accurate 5xx status.
Redirecting to the homepage	The infrastructure problem is hidden and the URL changes.	Keep the requested URL and repair the request path.
Restarting services without evidence	Useful failure state and logs may be lost.	Capture traces and metrics before recovery.
Blaming the CDN automatically	The origin application or database may be slow.	Inspect both edge and upstream timing.
Running long work synchronously	The user request remains tied to expensive processing.	Use queues and progress states where appropriate.
Retrying dependencies without limits	Retries can consume the entire request budget.	Use bounded retries and circuit breaking.
Testing only the homepage	The timeout may affect one template or dependency.	Test representative route patterns.
Ignoring intermittent failures	One slow target may fail only part of the traffic.	Compare target-level and regional results.
Closing after one healthy request	The problem may recur under realistic load.	Monitor through a defined observation window.

504 Gateway Timeout Checklist

A 504 task passes QA when the gateway deadline, slow upstream component, verified correction and stable recovery are documented with evidence.

The exact failed URL is recorded.
The request method is recorded.
The failure timestamp is recorded.
The public 504 response is captured.
Response headers are preserved.
The responding gateway is identified.
The request or trace ID is recorded.
The selected upstream is identified.
The gateway timeout is documented.
The application timeout is documented.
Dependency timeouts are documented.
Gateway logs are reviewed.
Application traces are reviewed.
Queue time is measured.
Application execution time is measured.
Database time is measured.
External API time is measured.
Worker saturation is reviewed.
Connection-pool saturation is reviewed.
CPU and memory are reviewed.
Database locks are reviewed.
Recent deployments are compared.
Regional differences are tested.
Backend targets are compared.
The root cause is documented.
The correction is deployed safely.
Representative routes are retested.
Important URLs are recrawled.
Latency remains within targets.
Monitoring confirms no recurrence.

Pass condition: Another analyst can trace the timed-out request through every serving layer, identify which operation consumed the deadline and verify stable recovery.

Frequently Asked Questions About 504 Errors

A 504 Gateway Timeout means that a gateway or proxy did not receive the required upstream response within its permitted waiting period.

What does 504 Gateway Timeout mean?

It means a gateway or proxy waited for an upstream server but did not receive the response required to complete the request within the configured time.

Is a 504 error a browser problem?

Usually not. The HTTP 504 response is generated by a gateway or proxy in the server-side request path, although client network conditions can create separate timeout symptoms.

What causes a 504 Gateway Timeout?

Common causes include slow application code, database queries, blocked workers, external API delays, resource saturation, network latency and misaligned timeout settings.

What is the difference between 504 and 502?

A 504 means the upstream response did not arrive in time. A 502 means the gateway received an invalid or unusable upstream response.

What is the difference between 504 and 503?

A 504 represents an upstream timeout. A 503 represents temporary service unavailability or insufficient capacity.

Can a database cause a 504 error?

Yes. Slow queries, blocked transactions, exhausted connections or database saturation can keep the application waiting until the gateway timeout expires.

Can an external API cause a 504?

Yes. A synchronous third-party API call can delay the application long enough for the public gateway to stop waiting.

Can Nginx return a 504?

Yes. Nginx can return 504 when its proxy or FastCGI read timeout expires before the configured upstream produces the required response.

Should I increase the gateway timeout?

Only after measuring the delay and confirming that the request is legitimately long, safely bounded and suitable for synchronous processing.

Are 504 errors bad for SEO?

Short isolated failures may have limited impact, but repeated or prolonged 504 errors can reduce crawling and eventually affect indexing.

Should a 504 page return 200 OK?

No. Returning 200 would falsely indicate that the requested resource was delivered successfully.

How can I check whether a URL returns 504?

Use the Novaverb HTTP Status & Redirect Chain Tracer to inspect the public response status, headers and redirect path.

Trace Slow Requests From Gateway to Dependency

Start with the exact URL and capture the 504 status, response headers, timestamp and gateway request ID. Then trace queue time, application execution, database work and external dependencies until the component consuming the deadline is identified.

Use the free HTTP checker for one URL, measure the public connection path with the Server Response Time Test and use Crawl Explorer or Site Health Audit when the timeout affects a wider URL set.

Check the 504 Response Measure Server Response Find 5xx URLs Sitewide Prioritize Timeout Issues

Novaverb connects live HTTP responses, crawl evidence, URL coverage and server timing so teams can distinguish one slow request from a systemic gateway-to-dependency problem.

Use the Decision Ladder to determine whether the next action should be query optimization, asynchronous processing, capacity recovery, dependency fallback or infrastructure escalation.
